Pontooning With Twin 500R Outboards

Mercury Racing flexes its outboard muscle with new V8

August 2023 Feature Brady L. Kay



If you're an outboard manufacturer there's really only one way to celebrate 50 years in the industry: release a powerful new supercharged engine.range of already impressive outboards, coming out with something new and innovative to add to the lineup might seem like a near impossible anniversary wish. Good news for the marine industry: the engineers at Mercury Racing simply saw it as a challenge to release something truly newsworthy and were clearly up to the task.

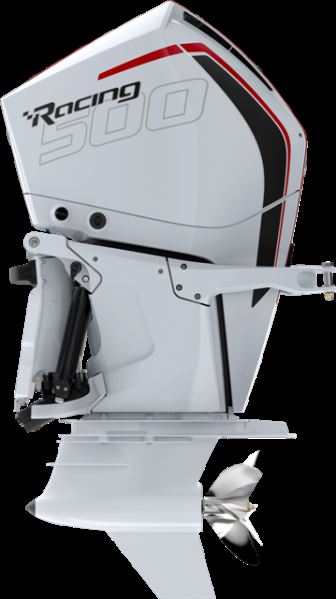

To kick off its 50th anniversary, Mercury Racing released its supercharged V8 500R outboard this summer. The 500R introduces a host of new components engineered to complement the raw power produced by this engine and the challenging demands of extreme-performance boating.

Capable of delivering more than 500 horsepower in a wide range of conditions, and weighing as little as 720 pounds, the 500R establishes a new benchmark for outboard power density,” said Stuart Halley, Mercury Racing general manager. “This motor offers incredible mid-range punch and pulls with unrelenting authority all the way to wide open throttle. This is the most exciting production outboard ever to emerge from the Mercury Racing shop.”

The 500R delivers more than 500 eager horsepower, 50 more horsepower plus 10 percent higher torque than the 450R model. Its 4.6-liter 64-degree V8 FourStroke powerhead is boosted by an exclusive Mercury Racing supercharger. The engine is designed to perform on pump fuel with a minimum 89-octane (95 RON) rating.

Pontoon Power

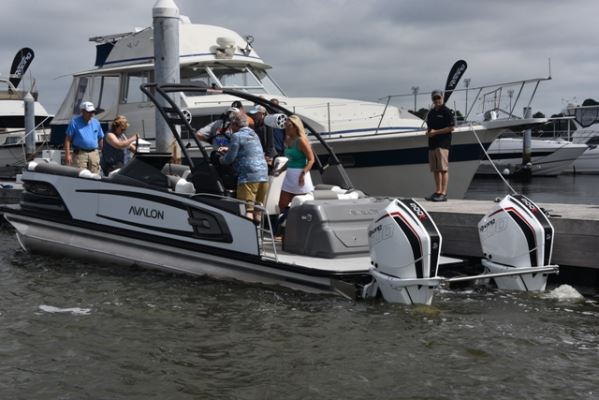

Avalon Pontoons and Forest River Marine were two of the first boat manufacturers to pair up with the new 500R and the combinations are clearly working. With speeds capable in the 80 mph range for the dual engine setups, the performance pontoon segment has never looked so good.

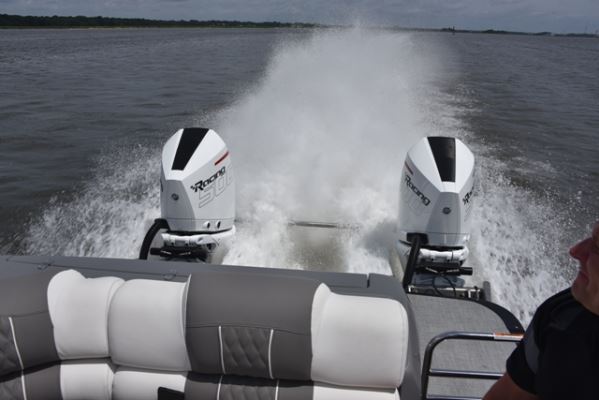

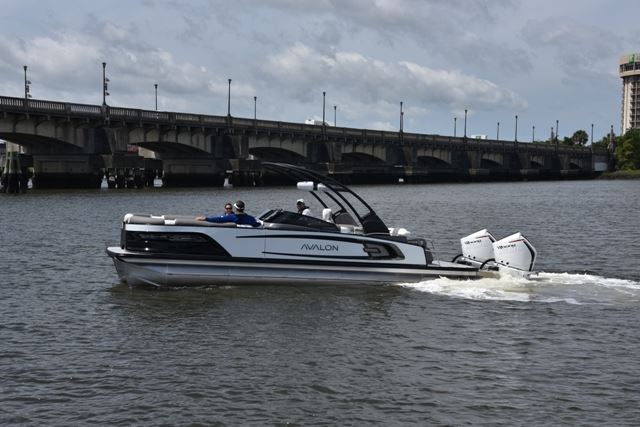

There is definitely a lot of potential in this engine,” said Duane Dinninger, president of Avalon Pontoons while on board the 2024 Avalon 27 Excalibur Limited with twin 500R outboards on the back. “We're really pleased with the acceleration and just the overall performance.”

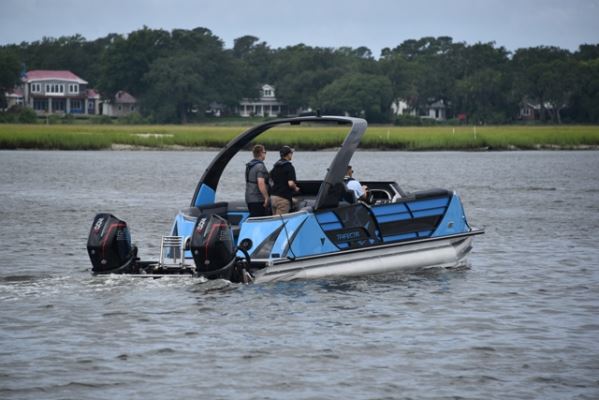

The new Carbon series Trifecta pontoon from Forest River Marine was the other 2024 pontoon at the Mercury Racing celebration and it had twin 500R engines as well with a lot more torque than could possibly be expected.

It's a top-end engine for a top-end pontoon and we're really excited with how it performed,” said Jordan Kistler, sales director at Forest River Marine. “One of the most unbelievable things about the 500R – and of course we had a twin setup so we had 1,000 horsepower – is when you're cruising at 60 mph and you hammer down the throttle and you think you're going fast, but then it really hits you. The torque is amazing.”

Feature Upgrades

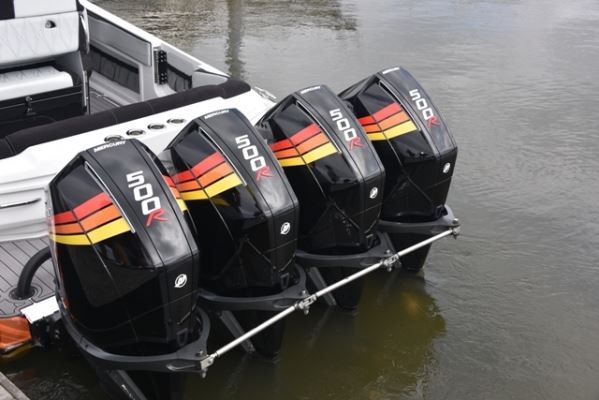

To handle this new level of power and to satisfy the most demanding performance boat owners, the 500R features upgraded component designs in the powerhead, cooling system, midsection and steering system. An all-new, 5.9-inch diameter gearcase, available in R-Drive and R-Drive Sport configurations, efficiently transfers the power to the water while delivering outstanding durability, handling characteristics, and cooling. The 500R is available in four lengths – 20, 25, 30 and 35 inches – to accommodate any single or multi-engine performance application. The 26-inch center-to-center mounting distance on multi-engine transoms enables seamless installations on new boats and repower applications.

We've had the opportunity to be on a couple of different boats and the 500R is super impressive,” said Joe Dorris, president of PlayCraft Boats. “Torque is tremendous. I think Mercury Racing has really got something here. We've been involved with Mercury Racing for many years doing high-performance boats and this is definitely a winner for them. I think all those people running 400Rs and 450Rs will end up trading their boats in once they see how impressive this 500R is.”

Stout Powerhead
While the 500R model is based on the same 4.6-liter V8 powerhead as the 450R model, the engine has been upgraded with a number of new components intended to support the scaled-up power output. A stout new crankshaft specific to the 500R model rides in 230-degree groove main bearings for improved oiling and features larger, more robust 1-inch driveshaft splines. Connecting rods, rod bearings and pistons are strengthened to handle increased combustion pressure and a higher 6600 RPM redline. A new low-inertia flywheel allows the engine RPM to climb faster for improved acceleration.

Supercharger boost pressure is increased by 26 percent compared to the 450R model. To accommodate increased airflow demand, the 500R features a new attenuator with a larger intake. Throttle body diameter is increased by 15 percent from 80mm to 92mm, and the shape of the supercharger inlet is redesigned to improve flow. The charge air cooler fin density and flow pattern are optimized to improve efficiency.

Advanced Racing Core
The 500R is the first Mercury Racing product to feature the exclusive Advanced Racing Core (ARC), a new midsection that upgrades durability and performance. A stronger, redesigned transom plate can accommodate three inches of vertical adjustment via seven transom mounting holes, twice the adjustment range available with the six-hole 450R transom plate. An enhanced trim system features two main hydraulic rams plus two new booster rams for added trim authority under full load, and the speed of the trim adjustment, like the 450R, is reduced to permit very fine resolution for more precise trim adjustment at high speeds. Precision-fitted heavy-duty guide plates and stiffened engine mounts are tuned to stabilize the engine for enhanced high-speed handling.

The Mercury hydraulic power steering system has been upgraded to deliver more steering authority, now producing 18 percent more torque than the 450R power steering system. To support this added steering torque, a newly designed steering arm, steering tube and steering cylinder are 20 percent stronger, with an upgraded tube material changed from aluminum to stainless steel. An optional rear tie-bar bracket integral to the ARC provides a strong, ultra-light mounting point for rock-solid precision steering.

Introducing R-Drive

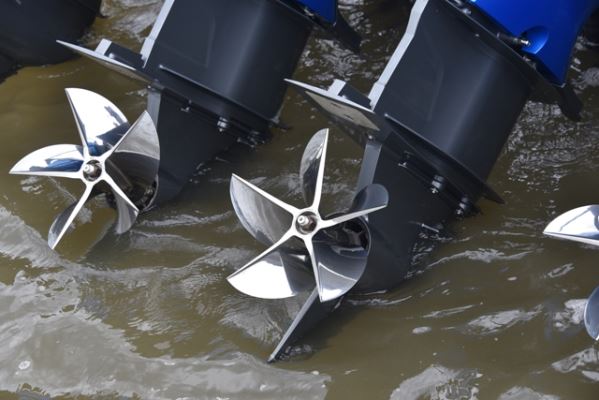

Mercury Racing has designed an all-new gearcase specifically for the 500R outboard. R-Drive is available in two versions to accommodate a variety of applications, and both versions feature a crescent leading edge and long aspect torpedo hydrodynamically tuned for high speeds. The new 5.9-inch gearcase can accommodate propellers up to 17 inches in diameter, one inch larger than the 450R gearcase.

The R-Drive gearcase, both base and sport variants, has been engineered with low water pickups, a torpedo shape designed to thrive in submerged, transition (semi-surfacing), and full surfacing applications, and a 1.60:1 gear ratio. A new intermediate spray plate reduces drag in submerged and transition applications. An application-based adjustable nose cap pickup system allows for optimizing cooling water flow for specific boat applications. The nose cones are available in two basic shapes – one for submerged and transition applications which have several water inlet hole variations, and another that is shaped to run fully surfaced on ultra-high-speed vessels. An all-new water pump increases cooling capacity by 57 percent by ensuring optimal water flow to the 500R. Both R-Drive versions benefit from larger, more robust shafts. The driveshaft diameter is increased to 1 inch from 7/8 inch and the propshaft diameter is increased to 1.5 inches from 1.25 inches compared to the 450R model.

The base R-Drive is designed to perform well in submerged and transition applications on boats capable of speeds between 85 and 100 mph, beyond the speed range of the Mercury Racing 5.44 HD gearcase. Many high-speed center console boats fall into this category and will benefit from this design. The R-Drive gearcase features a standard skeg length with a very efficient parabolic cross-section shape and is offered with left- or right-hand camber to balance steering force with standard and counter rotation props.

Tech Solutions
The 500R model features Mercury Racing technology solutions designed to enhance the boating experience, including the precision of Digital Throttle and Shift (DTS) with available Mercury Racing Digital Zero Effort controls. Adaptive Speed Control maintains engine RPM as load changes due to sea conditions or turning maneuvers to maintain boat authority with less control input. The 500R model supports all Mercury SmartCraft technologies, including the Engine Guardian monitor system and VesselView multi-function displays. The Top Cowl Service Door eases routine maintenance by providing easy access to the oil dipstick and fill without removing the cowl.

Color Options
Three color options are offered for the Mercury Racing 500R model: Phantom Black or Cold Fusion White are finished with Mercury Racing graphics and Devil Eye Red trim. For boaters planning a custom paint application, the 500R is also available in “ready for paint” in Phantom Black with no applied graphics or trim panel. Graphics and an application mask are included for installation after custom painting. The 500R is covered by a three-year limited factory warranty with up to five additional years of Mercury Product Protection extended factory warranty available.

Happy Anniversary
As Mercury Racing continues to celebrate its 50-year milestone, it's the performance industry who should be celebrating the loudest with the release of the 500R. While geared to benefit all boaters, there should be plenty of pontoon enthusiasts eager to have this impressive new outboard on their boat. The performance capabilities as well as the expectations of what a pontoon boat can do continue to increase as outboard manufacturers such as Mercury Racing continue to push the boundaries of what was once thought to be impossible.
